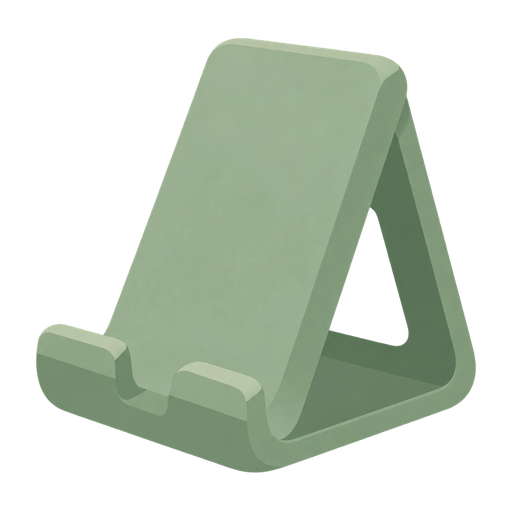

Printed phone stand
PLA filament is laid down in layers to make a small desktop phone stand.
Material
PLA stand body: PLA
Material selection rationale
- Room-temperature rigidity
- Keeps the support shape under a small static load.
- Melt-processable filament
- Can be deposited in layers following a digital model.
- Layer-direction sensitivity
- The supporting face and hook are assembled from deposited strands; their orientation and bonding affect how a load reaches the base.
How it becomes a product
- Make the filament: PLA resin is compounded as required and extruded into a controlled-diameter strand.
- Print the stand: A heated nozzle deposits the strand layer by layer; cooling fixes the shape. The sliced model sets walls, infill and layer direction; those choices change strength without changing the PLA monomer origin.
Preparation routes
Lactide route
Ring-opening polymerisation. Lactide rings open and join into PLA chains. Each cyclic diester supplies two lactic-acid-derived units. Ring opening and ordinary filament melting are chemically different operations.
Industrial catalysts and purification control polymer grade. Colouring, filament extrusion and printing are later steps. Lactide stereochemistry and process control affect the resin grade; the generic structure does not specify one stereoisomer.
From sugars to lactide
- Fermentable plant-derived sugars → Lactic acid
Microorganisms convert the sugar feedstock into lactic acid, which is recovered and purified.
- Lactic acid → Lactide
A staged industrial process converts lactic acid through short ester chains into cyclic lactide; this is not a single classroom reaction.
