Protective packaging foam

Expanded polystyrene cushions a product inside its box.

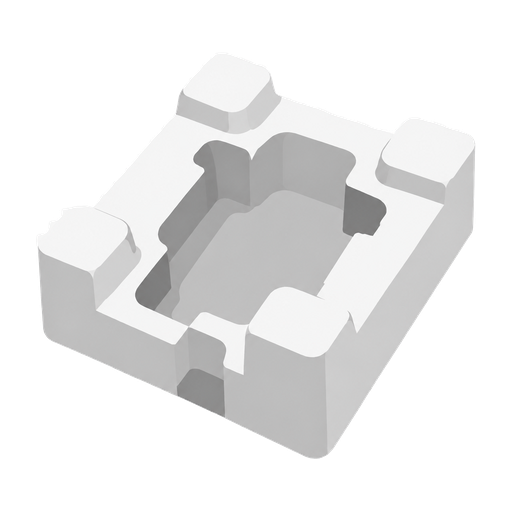

Protective packaging foam, illustrative image

Material

EPS insert: PS

Material selection rationale

Cellular cushioning
Helps absorb knocks during transport.
Low weight
Protects an item without adding much shipping mass.
Shape-specific cushioning
Recesses locate an object and spread contact over the cushion; foam density and cell damage determine whether protection survives another impact.

How it becomes a product

  1. Expand the beads: Expandable PS beads containing a blowing agent are heated to form light, cellular beads.
  2. Mould the insert: The expanded beads are fused in a mould shaped to fit the item being protected. Expanded beads are fused in a shaped mould; bead bonding contributes to the strength of the finished block.

Preparation routes

Styrene route

Addition polymerisation. The vinyl groups join into a carbon backbone carrying phenyl side groups. Making foam is a later processing choice, not a second polymerisation reaction. The benzene ring is retained as a side group rather than opened into the growing chain. Solid PS and expanded PS therefore share this molecular route.

Initiation and temperature control support chain growth. Expandable grades also contain a blowing agent, which is not a monomer; rubber-modified grades have additional polymer content. Rubber addition or bead expansion changes material structure beyond this simple backbone trace.

  1. Polystyrene: from benzene and ethene to solid and expanded productsChemical Industry Education Centre, University of York

From benzene and ethene to styrene

  1. Benzene + Ethene → Ethylbenzene

    Alkylation joins an ethyl group to the benzene ring. Both feedstocks belong to this step.

  2. Ethylbenzene → Styrene

    Dehydrogenation removes hydrogen and creates the vinyl double bond used in the next polymerisation step.

  1. Polystyrene: from benzene and ethene to solid and expanded productsChemical Industry Education Centre, University of York

Sources

  1. Polystyrene: from benzene and ethene to solid and expanded productsChemical Industry Education Centre, University of York
  2. Pack and protect: expandable polystyreneBASF
